Wichita Round Bottom Double Wall Frac Tank (37441L)

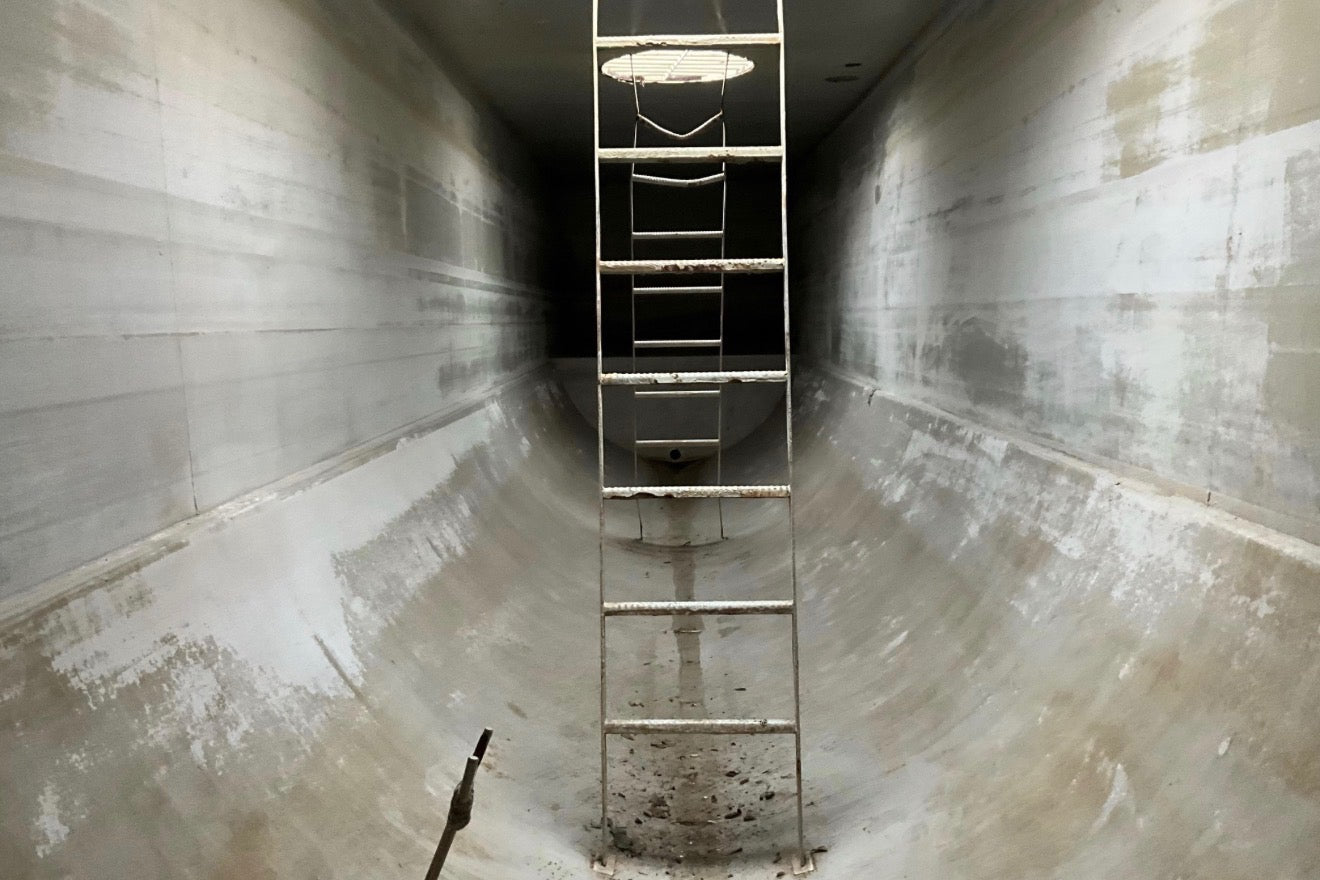

Our 18,000-gallon Round Bottom Double Wall frac tank is the premium storage solution for wastewater, produced water, chemicals, and other industrial liquids that demand secondary containment. The round bottom V-floor design ensures complete and easy drainage every time, while the smooth wall interior makes cleanout fast and simple. With heavy-duty ASTM A36 carbon steel throughout this tank is engineered for the job site.
Double-wall construction means double peace of mind. The interstitial space is monitored by two 1" ball valve drains, giving you secondary containment that meets strict environmental compliance standards.

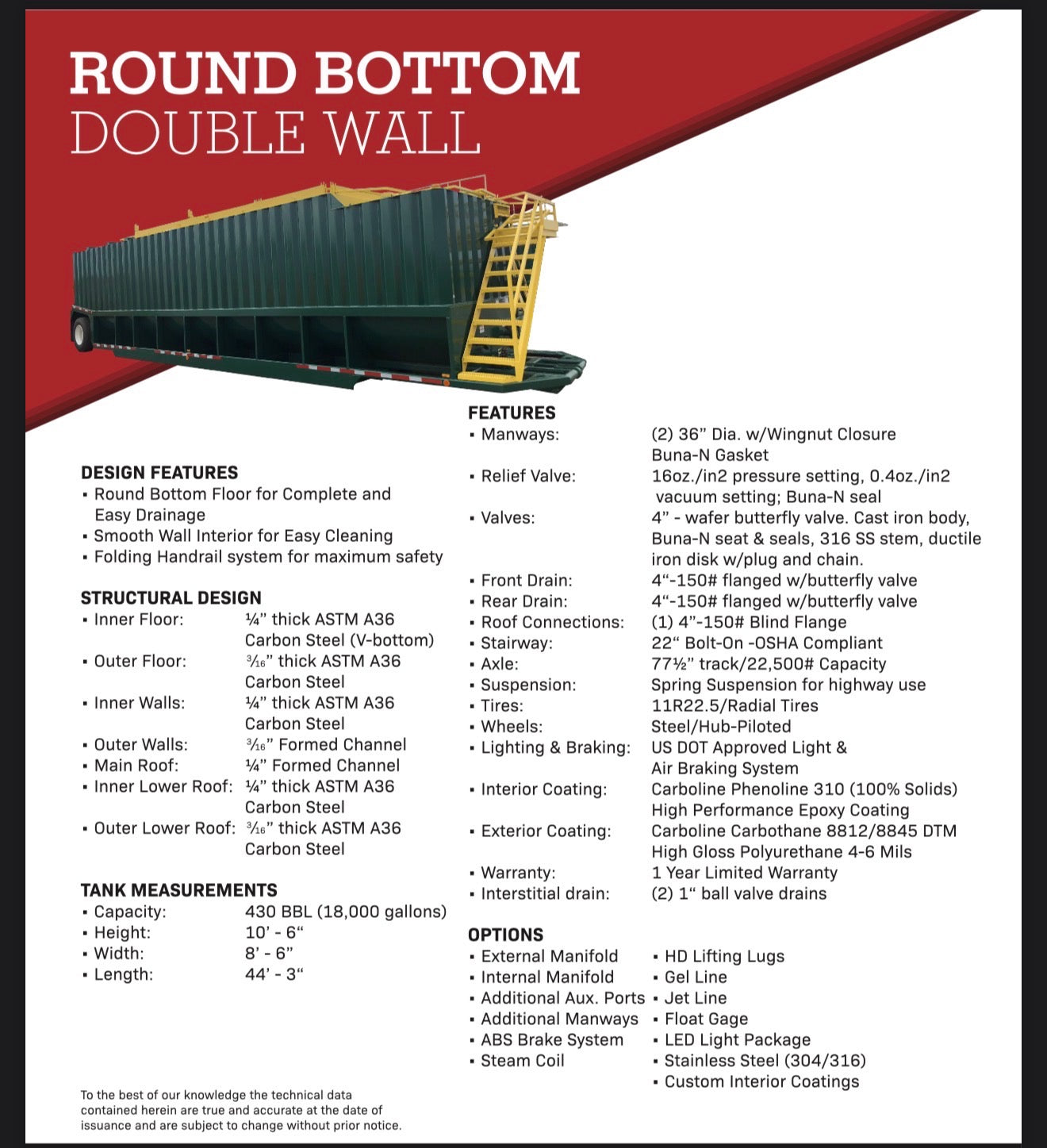

Tank Specifications:
- Capacity: 430 BBL (18,000 gallons)
- Lining: Carboline 310
- Height: 10' – 6"
- Width: 8' – 6"
- Length: 44' – 3"
- Axle: 77½" track / 22,500 lb. capacity
- Inner Floor: ¼" ASTM A36 Carbon Steel (V-bottom)
- Inner Walls: ¼" ASTM A36 Carbon Steel
- Relief Valve: 16 oz./in² pressure / 0.4 oz./in² vacuum, Buna-N seal
- Valves: (6) 4" wafer butterfly valves, cast iron body, 316 SS stem

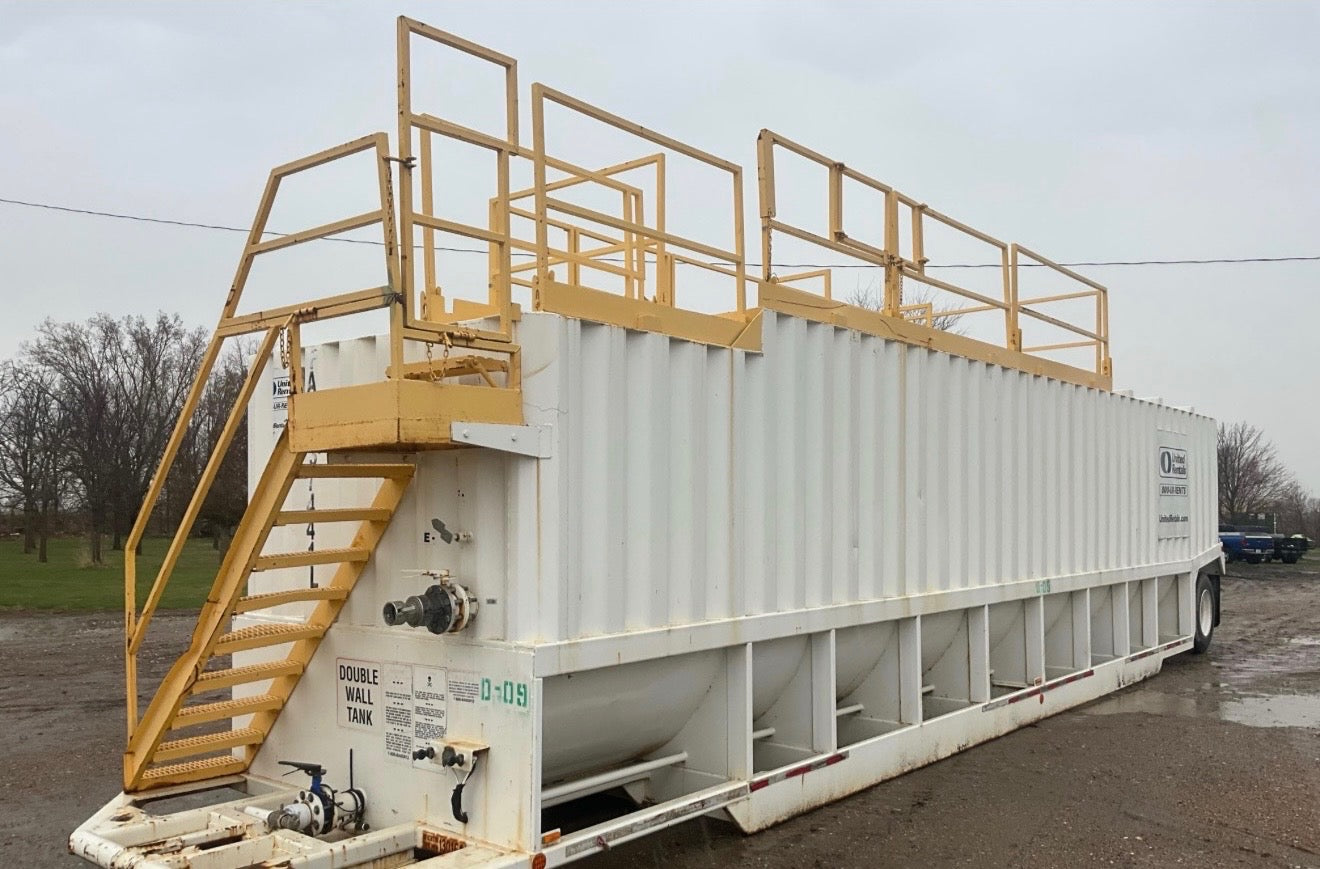

- Front & Rear Drain: 4"-150# flanged with butterfly valve

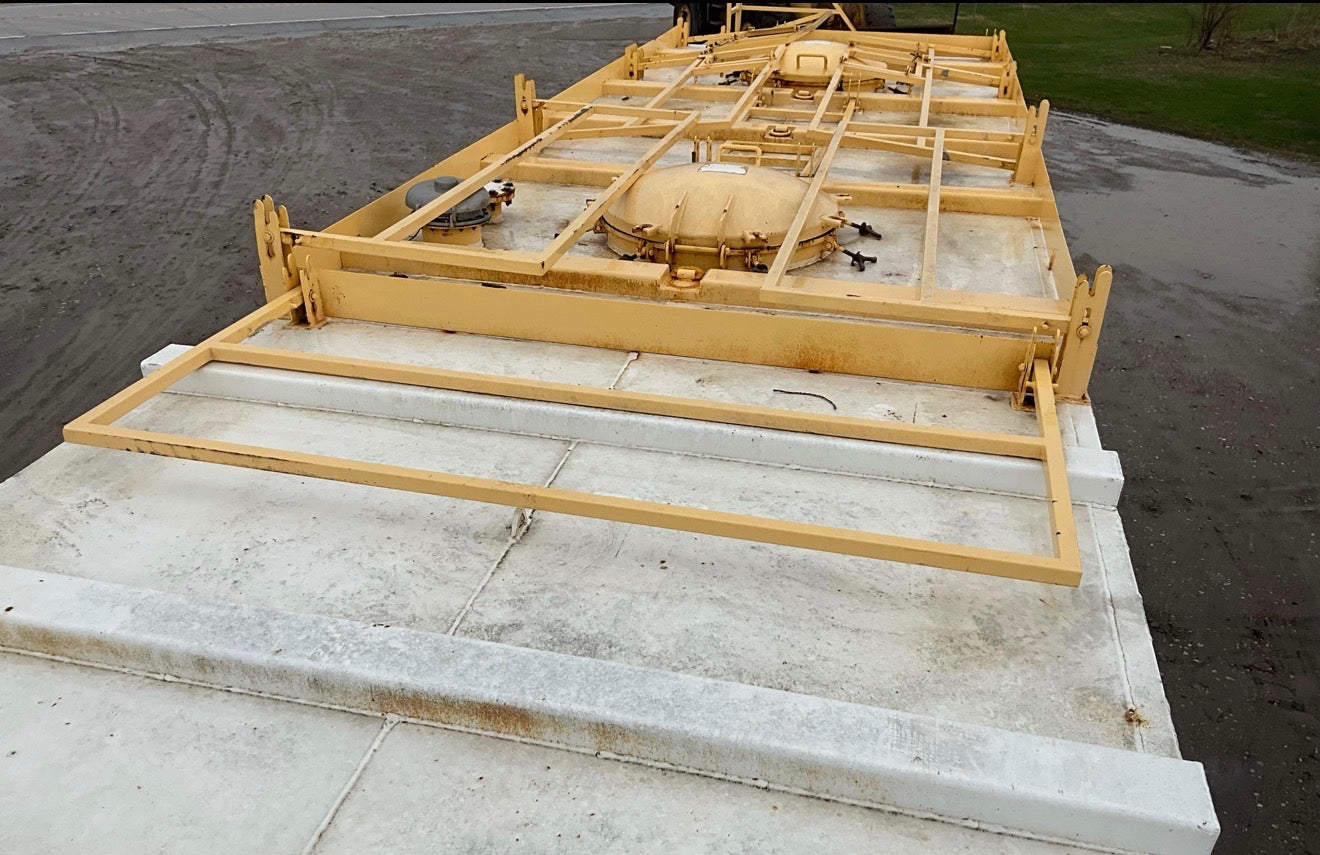

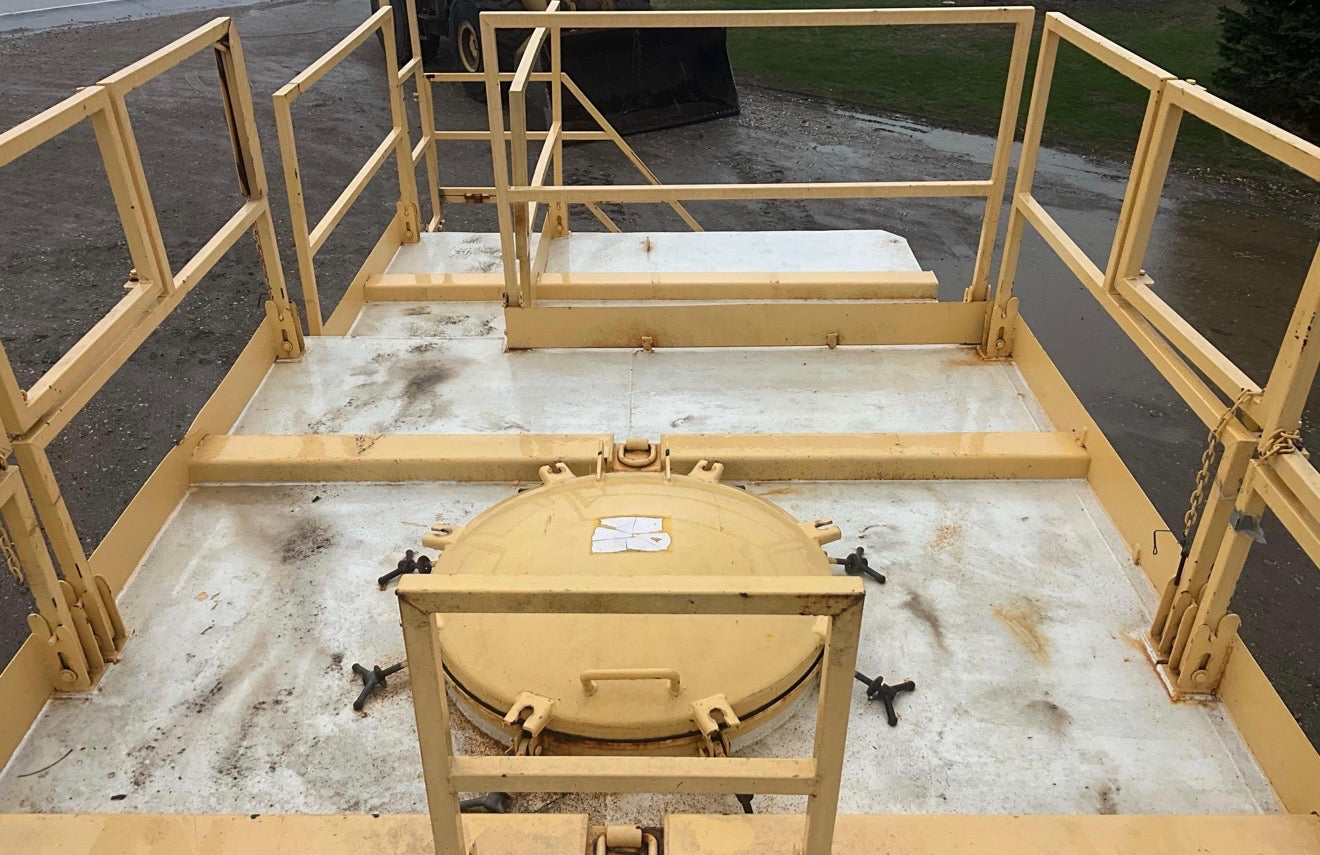

- Roof Connection: (1) 4"-150# blind flange
Every tank listed in our inventory is ready to ship. We've inspected or repaired the lights, tires, and brakes and ensured the frac tank is ready to ship. Upon order, we post the tank for pickup on a trucking load board to book drivers. Booking a driver can take 1-3 business days and we always get the frac tanks delivered within 7 business days of purchase.
Please note that you as Purchaser are responsible for providing equipment, at delivery, to lift the frac tank(s) off the transport semi-tractor, the tongue weight is approximately 8,000 pounds. As an alternative, you can use wooden blocks to temporarily block up the tank so that the tractor can disengage from the frac tank and drive away; if so, place the blocks under the rails about 15 feet back from the front of the tank where the blocks should be about 30 inches from the rail to the ground.
- In stock, ready to ship
